carbon dioxide system

NegotiableUpdate on 01/18

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

Shanghai Zhongshe develops fully automatic fire extinguishing systems for host manufacturers. We provide professional installation guidance and inspection services to ensure the safe production of your equipment. At the same time, we provide you with 24-hour service. Usage scenarios: Combustible liquids, broken knives, knife collisions, dry grinding, static electricity, high temperatures, oil mist explosion and detonation caused by program errors; Alternatively, when processing active metals such as magnesium alloys and titanium alloys, sparks can be generated by cutting tools. Our system can quickly extinguish fires at an extremely early stage, and after extinguishing the fire, it is clean and free of secondary pollution. (Not suitable for extinguishing fires with reactive metals such as sodium, potassium, magnesium, titanium, etc.)

Product Details

Shanghai Zhongshe develops fully automatic fire extinguishing systems for international host manufacturers. We provide professional installation guidance and inspection services to ensure the safe production of your equipment. At the same time, we provide you with 24-hour service.
Usage scenarios
Combustible liquids, broken knives, collision knives, dry grinding, static electricity, high temperature, and oil mist explosion and detonation caused by program errors; Alternatively, when processing active metals such as magnesium alloys and titanium alloys, sparks can be generated by cutting tools. Our system can quickly extinguish fires at an extremely early stage, and after extinguishing the fire, it is clean and free of secondary pollution.
(Not suitable for extinguishing fires with reactive metals such as sodium, potassium, magnesium, titanium, etc.)
Applicable fire types
Used to extinguish initial fires in books, archives, valuable equipment, precision instruments, electrical equipment below 600 volts, and oils. Suitable for extinguishing Class B fires, such as those caused by kerosene, diesel, crude oil, methanol, ethanol, asphalt, paraffin, etc. Suitable for extinguishing Class C fires, such as those caused by coal gas, natural gas, methane, ethane, propane, hydrogen, etc. Suitable for extinguishing Class E fires, such as fires caused by the burning of charged objects.
advantage
Good fluidity, high spray rate, non corrosive container and non perishable properties, efficient and environmentally friendly, clean without secondary pollution, convenient and low-cost secondary filling

Multiple installation methods for you to choose from

1. Integrated, often using external or floor mounted installation methods.

2. Installation method for split type, controller and bottle component.

3. Embedded type, the controller and bottle group are integrated with the equipment for a more beautiful appearance.

ZMTcarbon dioxide systemTechnical Specifications:

Specifications project	ZMT/03Y	ZMT/07Y	ZMT/14Y	ZMT/25Y	ZMT/45Y
Fire extinguishing medium Extingushing agent	Carbon dioxide
Fire extinguishing agent storage capacity (KG) Extingushing agent weight	3Kg	7Kg	14Kg	24kg	42kg
Third generation external dimensions (mm) Cabinet size	280240860	2902401200	3703461490	3803601800	4204001900
Total weight Total weight	25Kg	45Kg	55Kg	125kg	185kg
Temperature range for use Operating temperature range	0℃-50℃
device power supply Power	AC100V/110V/200V/220V ±15% 50/60HZ
working power supply Operating voltage	DC24V
Fire protection volume Maximum volume of fire protection	≤2m³	≤4.6m³	≤9.3 m³	≤16m³	≤28 m³
Provide non-standard special customized products Provide special customized products

device composition

It consists of three major systems: fire detection system, fire extinguishing control system, and fire extinguishing implementation system.

1) Detection system

The detection system includes several sensors that detect temperature, flames, and smoke in the protected area, and different systems may use different sensors.

2) Fire extinguishing control system

The fire extinguishing control system includes a fire extinguishing controller, manual fire extinguishing control buttons, sound and light alarms, and their external wiring. Mainly responsible for identifying signals from the automatic detection system and determining whether to implement signals for the fire extinguishing system output. Before the fire extinguishing controller outputs the fire extinguishing command, the system will execute a series of pre-set regulations.

3) Fire extinguishing system

The fire extinguishing system consists of a CO2 storage cylinder group, a fire extinguishing activation mechanism, a CO2 leakage alarm device, as well as an external CO2 delivery pipeline and CO2 nozzle. After receiving the command signal to extinguish the fire, the fire extinguishing system promptly releases CO2 into the protected area.

二氧化碳自动灭火系统

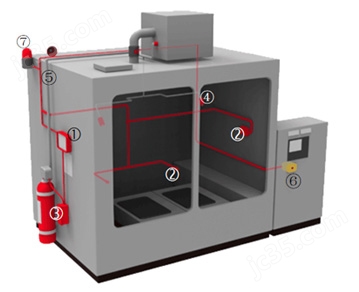

System components

① Fire extinguishing controller ② Fire detector
③ Fire extinguisher group ④ Fire extinguishing nozzle
⑤ Fire extinguishing pipeline ⑥ Manual fire extinguishing button
⑦ Sound and light alarm

Device features

The dedicated automatic fire extinguishing device for Zhongshe Industrial Equipment has been upgraded again, with a brand new third-generation automatic fire extinguishing device.

The true "digital intelligent automatic fire extinguishing system" can achieve all-weather automatic monitoring, alarm, and fire extinguishing. The system also has intelligent automatic maintenance and recording functions, truly realizing "unmanned" flexible production, saving labor and time costs for enterprises, and providing more protection for safe production operations.

Hand automatic conversion function	Using equipment specific fire extinguishing agents, efficient and clean
Fire extinguishing agent leakage alarm device	Compatible with 3-channel real-time temperature monitoring, flame, smoke and other input triggering alarms
Switching between Chinese and English display interfaces	On site programmable fire alarm control function
Industrial grade control circuit	Comes with a backup battery and battery management system, with a maximum battery life of 12H
IP65 protection level	Equipped with multiple communication interfaces such as 485 and CAN
Simple and reliable daily maintenance	Optional wireless monitoring module and system for real-time monitoring of device status
Black box 'recording function
Recent 1000 records: startup, reset, fire alarm, malfunction, fire extinguishing ..

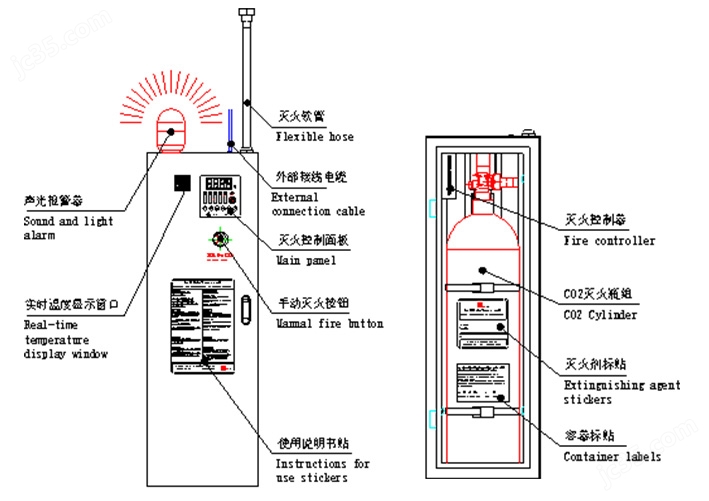

二氧化碳自动灭火系统
