Jinan Zhangli Machinery Co., Ltd
Symmetrical workpiece drilling, milling, boring, CNC double-sided boring and milling machine for construction machinery
NegotiableUpdate on 01/07
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
Symmetrical workpiece drilling, milling, boring, CNC double-sided boring and milling machine for construction machinery is a specialized machine tool equipment for symmetrical workpieces in construction machinery. The machine tool is equipped with a dedicated mobile worktable and two sets of horizontal sliding pillows, which can achieve rapid machining of workpieces. Within the effective stroke range, the workpiece can be drilled, milled, boring and other machining. The workpiece can be machined in one go (without secondary clamping), with fast loading and unloading speed, fast positioning speed, high machining accuracy, and high machining efficiency.

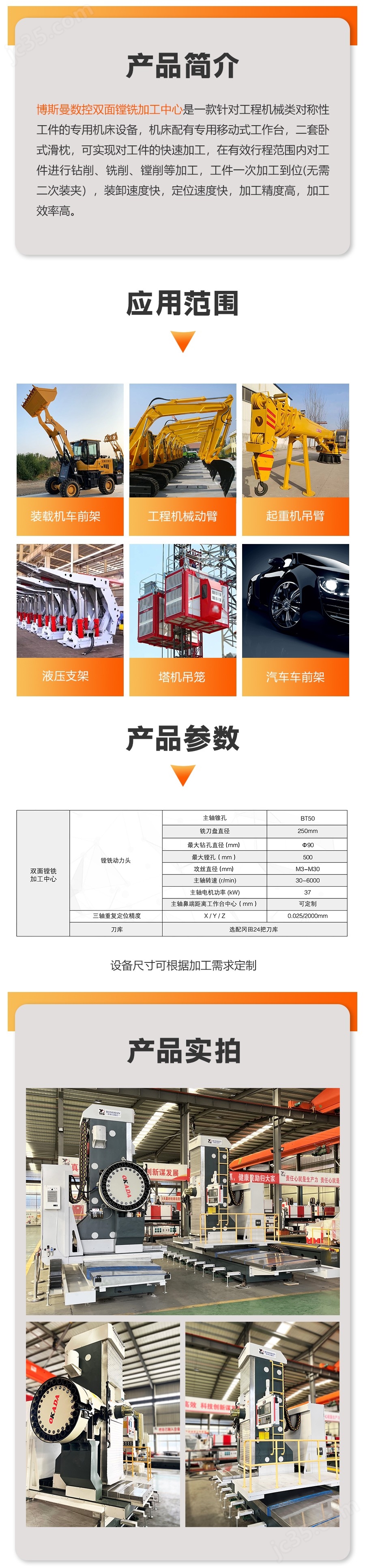

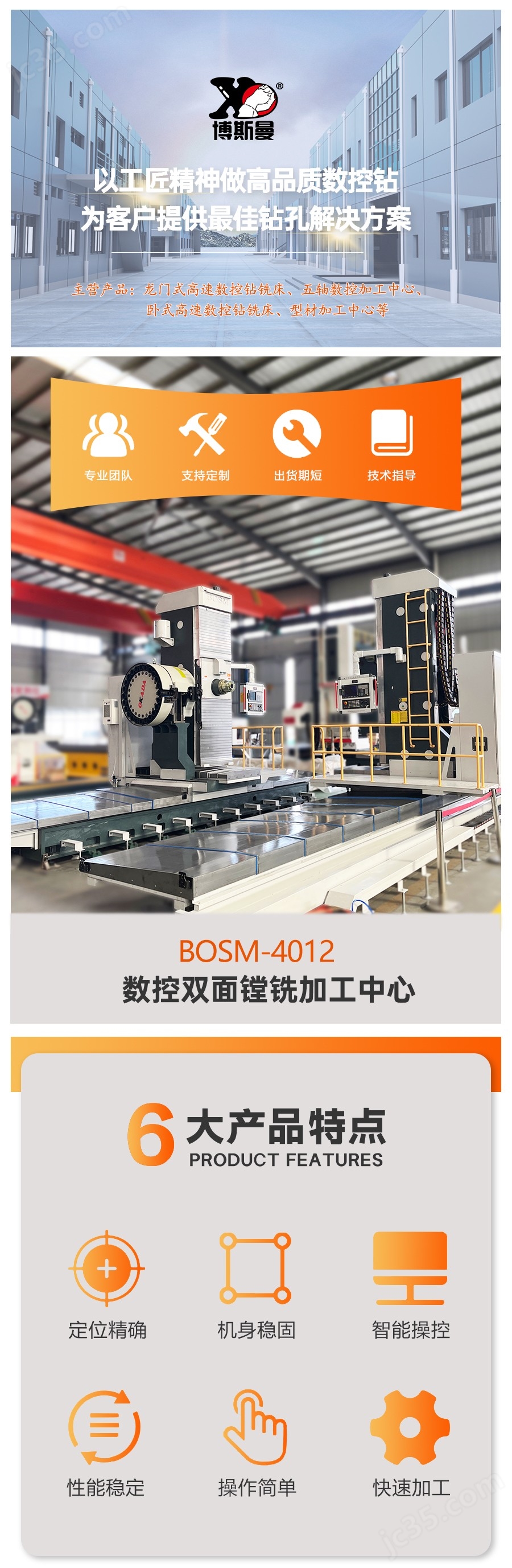

Product Details
Symmetrical workpiece drilling, milling, boring, CNC double-sided boring and milling machine for construction machinery
Symmetrical workpiece drilling, milling, boring, CNC double-sided boring and milling machine for construction machinery
1.1 X-axis: worktable along fixed bed railshorizontalLonging for a revival of sports.
X-axis transmission: using AC servo motorThe high-precision planetary gearbox is equipped withBall screw transmission drives the worktable to move and achieve X-axis linear motion.
Guide rail form: Two flat high-strength precision linear guides
1.2 Y1 axis: The power head slider is vertically installed on the front side of the column and moves back and forth along the column guide rail.
Y1 axis transmission:Adopting AC servo motorpassBall screw transmission, drivingSliding saddleExercise, achieve Y1Axis linear motion.
1.3 Y2 axis: The power head two slide pillows are vertically installed on the front side of the column and move back and forth left and right along the column guide rail.
Y2 axis transmission:Adopting AC servo motorpassBall screw transmission, drivingSliding saddleExercise, achieve Y1Axis linear motion.
1.4 Z1 axis: The power head slide saddle is vertically installed on the front side of the right column and moves up and down along the column guide rail.
Z1 axis transmission:Adopting AC servo motorThe high-precision planetary gearbox is equipped withBall screw transmission, drivingramExercise, achieveZ1Axis linear motion.
1.5 Z2 axis: The power head slide saddle is vertically installed on the front side of the right column and moves up and down along the column guide rail.
Z1 axis transmission:Adopting AC servo motorThe high-precision planetary gearbox is equipped withBall screw transmission, drivingramExercise, achieveZ2Axis linear motion.
The boring and milling power head (including power heads one and two) is a composite square slider, and the movement direction is adopted for bothFour linear roller guide pairs are used for guidance, driven by an AC servo motor to drive a precision ball screw pair. The machine is equipped with a nitrogen balance bar to reduce the bearing capacity of the machine head on the screw and servo motor. The Z-axis motor has an automatic brake function. In the event of a power outage, the automatic brake will tighten the motor shaft and prevent it from rotating. When working, feed quickly when the drill bit is not in contact with the workpiece; When the drill bit comes into contact with the workpiece, it automatically switches to work in. After the drill bit penetrates the workpiece, it automatically switches to fast retreat; When the end of the drill bit leaves the workpiece and reaches the set position, it moves to the next hole position to achieve automatic circulation. And it can achieve functions such as drilling blind holes, milling, chamfering, chip breaking, and automatic chip removal, improving labor productivity.
