SHL63P high rigidity CNC lathe
NegotiableUpdate on 01/09
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
SHL63P high rigidity CNC lathe is a precision machine tool equipment widely used in industries such as metal processing and mechanical manufacturing. It plays an important role in modern manufacturing industry with its excellent performance and stable cutting ability.
Product Details
SHL63P high rigidity CNC lathe is a precision machine tool equipment widely used in industries such as metal processing and mechanical manufacturing. It plays an important role in modern manufacturing industry with its excellent performance and stable cutting ability.
High application type
Wide processing range, high rigidity, and high degree of customization
Φ630mm
Swing over bed
1000mm
Maximum cutting length
Φ500mm
Maximum cutting diameter
A2-8
Spindle end type
product appearance
Product Highlights

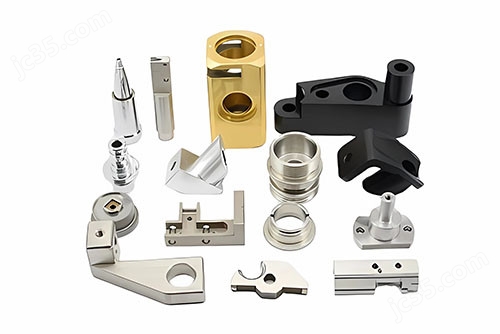

Wide processing range:
Capable of processing large or ultra large workpieces, adapting to the manufacturing needs of large structural components, molds, etc

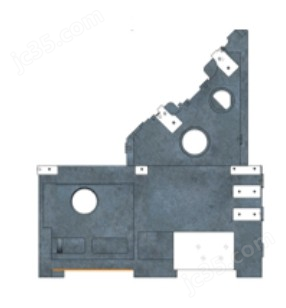

High rigidity structure:
In order to support and ensure the stability and accuracy of large stroke motion, the 63P adopts a more reasonable casting process, with a sturdy structure and a high rigidity bed body
High degree of customization:
According to different processing requirements, it often has a high degree of customization in terms of configuration, functionality, etc
Technical Specifications
Processing range
unit
-
Swing over bed
-
Φ630mm
-
Maximum cutting length
-
1000mm
-
Maximum cutting diameter
-
Φ500mm
-
Rotation diameter on skateboard
-
Φ500mm
-
X/Z-axis travel
-
280/1070mm
spindle
unit
-
Type and code of spindle end
-
A2-8
-
Maximum diameter of the bar material passing through
-
Φ65mm
-
Main spindle speed range
-
50-3500mm
-
Motor power
-
15/18.5kW
-
Standard chuck diameter
-
10″ inch
feed
unit
-
Fast moving speed
-
30/30m/min
tailstock
unit
-
Cone taper of tailstock spindle taper hole
-
5# T
knife holder
unit
-
Standard knife holder form
-
12 (Hydraulic) T
-
Can the knife disc be selected nearby
-
can
Overall dimensions
unit
-
Machine dimensions
-
4400*2200*2150mm
-
Machine weight (approximately)
-
7500kg
