The machine tool coolant tank is an integral part of the machine tool in mechanical processing. The common form of the machine tool coolant tank is a combination of multi-stage sedimentation partitions above the water tank, multi-stage partitions inside the water tank, and a water pump.

Machine tool filtrationThe water tank can be designed with a baffle in the middle, which divides the water tank into a sedimentation zone and a clean water zone. The cooling water flows back from the cutting zone of the machine tool to the filter frame and then back to the sedimentation zone, settling fine chips and debris at the bottom. The clean water flows back to the clean water zone from above the baffle, and the pump pumps the cooling water to the working position of the machine tool.

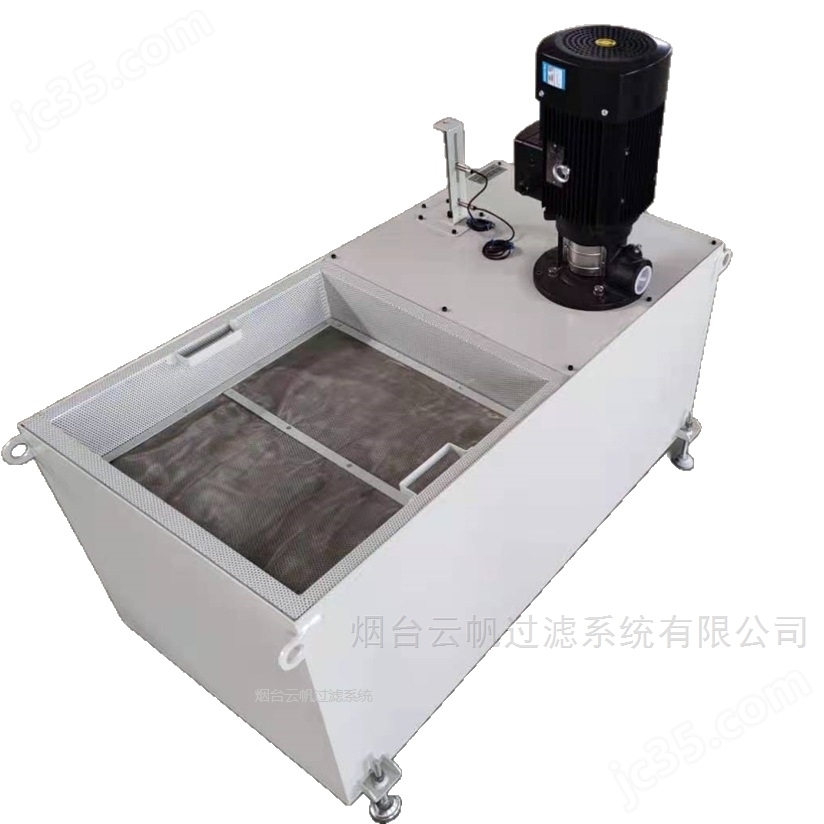

The machine tool filter water tank includes a box body, a water pump, a water pump installation plate, a filter screen frame, a partition, and a primary filter screen and a secondary filter plate inside the filter screen frame; The water pump is fixedly installed inside the box through the water pump installation plate, the filter frame is fixed on the box, and a partition is set inside the box. The primary filtration of the filter frame is a detachable stainless steel wire mesh, and the secondary filtration is a fine pore filter plate.
Example of using the filtered water tank in the machine tool cooling system:

For use with specialized machine tools, the filter water tank is placed in the pit as a whole. Impurities in the liquid flow into the filter frame of the water tank on site, and after being filtered by filter paper and stainless steel filter screen, it flows into the water tank and is then pumped back into the machine tool circulation by a screw pump.

The equipment is a liquid supply system for the machine tool water tank; The appearance of the water tank is approximately850*600*580Millimeters, with a volume of approximately280Raise.

The water tank is equipped with a reed switch type low liquid level alarm device, filter screen frame, lifting ear, cover plate, partition plate, drain valve, water pump, overflow valve, pressure gauge, etc.

The filter frame is equipped with stainless steel wire mesh, with a filtration accuracy of about120The eyes.

The filter frame can be easily laid with filter paper to improve filtration accuracy. Filter paper filtration accuracy:25-45Microns. Filter paper should be manually replaced regularly.

Strengthen the water tank to ensure its strength and rigidity during storage and lifting.

The main material of the water tank is carbon steel, and the outer surface is sprayed with primer and topcoat.

Plastic polishing equipment, plastic particle filtration water tankCan be made according to requirements.
