In production practice, various forms of gravity based metal processing coolant paper tape filters are widely used,Suitable for precision metal processing that produces magnetic and non-magnetic particlesThe main structural forms are generally flat bed type、vertical、Arc net type、Diagonal horizontal, etc. Commonly used for emulsion filtration in cold rolling production lines for strip steel, filtering iron sludge and grinding wheel ash in grinding machine emulsions, filtering for centerless grinding machines, double end grinding machine filtration and cooling systems, cylindrical grinding machine water tanks, roller grinding machine cooling liquid combination filtration systems, emulsion cooling water tank gravity paper tape filters, etc.

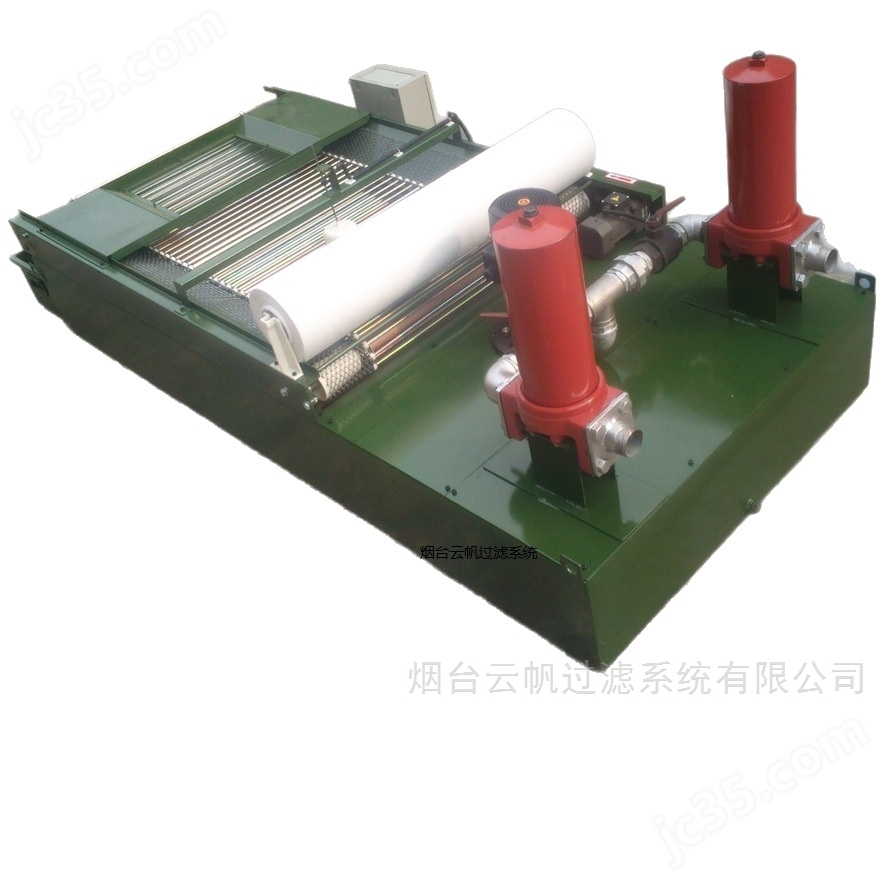

Flat bed paper tape filter is a form of gravity paper tape filter, also commonly known as flat mesh paper tape filter or horizontal filter.

verticalThe filter cloth supported by the mesh belt of the gravity belt filter and the disc together form a deep filtration tank, and the depth of accumulated water in the filtration tank is deepened.

The arc mesh paper tape filter uses multi-layer special sealing design on both sides of the filter paper to prevent liquid leakage, maintain a high liquid level, and replace the filter paper easily and smoothly. The raised body of the arc mesh paper belt filter avoids foam overflow, and the accumulation of foam with impurities is conducive to the filtration of impurities.

The inclined paper tape filter does not have the traditional flat web paper tape filter's paper conveyor belt structure. The side of the filter frame has an overflow port, and when the liquid level in the tank is full, it will not flow outside the water tank. The bottom plate tilts towards the paper output direction, and the paper output position gradually rises to facilitate water control. The used filter paper carries very little liquid. No special sealing mechanism is used, and the structure is simple. Used filter paper can be automatically retracted for easy handling.

Targeting various typesPaper filter machine tool coolant filtration stationThe maintenance process can extend the service life of the original product and reduce subsequent usage costs.
