Laser loading and unloading solution: ByTrans Extended

NegotiableUpdate on 01/09

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

Laser loading and unloading solution: ByTrans Extended is a loading and unloading system developed by Baichao for the global market, with a very clever design. The three most prominent features of this system are: amazing speed, compact layout, and powerful functionality, which can help users achieve high-speed production efficiency.

Product Details

Laser loading and unloading solution: ByTrans ExtendedIt is a loading and unloading system developed by Baichao for the global market, with a very clever design. The three most prominent features of this system are: amazing speed, compact layout, and powerful functionality, which can help users achieve high-speed production efficiency.

激光上下料解决方案：ByTrans Extended

ByTrans Extended offers two basic specifications: the first is 3000 * 1500mm format, with a maximum load of 890KG and a supported plate thickness of up to 25mm; the second is 4000 * 2000mm format, with a maximum load of 1300kg and a supported plate thickness of 20mm.

Amazing speed, maximizing device utilization to perfection

The first major feature of ByTrans Extended is that it is faster than most similar products. The loading and unloading cycle time of 3015 format is within 60 seconds, and the cycle time of 4020 format is also within 75 seconds, almost without any waiting time for the laser cutting machine.

激光上下料解决方案：ByTrans Extended

Compact layout, freeing up confined space

The second major feature of ByTrans Extended is its clever layout, which is linearly arranged with laser cutting machines and occupies minimal space.At the same time, it is compact in size and requires short installation time.

Its expandable structure allows for the release of space around the laser bed, making it easy to handle both maintenance and temporary insertion tasks.

Powerful functionality, flexible response to different scenarios

The design of the second tray is another highlight of this loading and unloading system, which can be used for multiple functions:

Used as a raw material tray.The storage capacity of raw materials is doubled, which means that even without connecting to the material warehouse, it can continuously process twice or different specifications of materials at once.

激光上下料解决方案：ByTrans Extended

Used for sorting large items.The vacuum unit of the loading fixture can be directly used for sorting large items, and the sorted sheet materials can be automatically stored on the second tray.

激光上下料解决方案：ByTrans Extended

Used for plastic film separation.Especially suitable for users who have high requirements for the surface quality of workpieces. At this point, the second tray serves as a plastic film warehouse. During the automated cycle, the suction cup fixture automatically picks up a plastic film and places it on top of each cut product, which is then fed into the feeding tray by the hobbing fixture.

激光上下料解决方案：ByTrans Extended

Stable and reliable loading and unloading process

The feeding fixture adopts a vacuum suction cup method, and a single suction cup can suck up 25kg. Each suction cup can be independently controlled, making it easy to handle special shape and specification sheets.

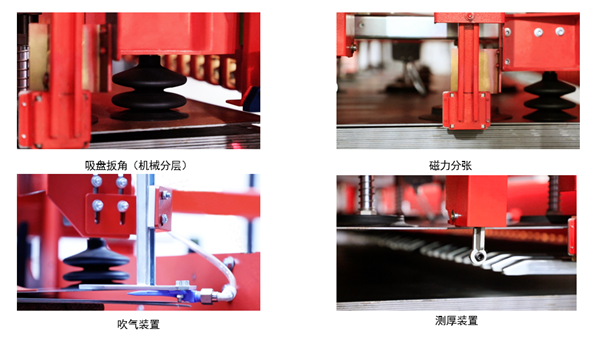

In order to ensure that only one sheet of material is sucked during each feeding, the feeding fixture also integrates four guarantee functions, namely mechanical layering (independent corner suction cup)+magnetic splitting+blowing+thickness measurement, etc. As a standard configuration, the quadruple guarantee scheme ensures that there is no loss during the feeding process.

激光上下料解决方案：ByTrans Extended

The cutting part adopts a fork tooth method. For customers who have high requirements for the surface quality of the board, we offer a seamless hobbing option by adding an anti scratch material strip on the hobbing, which moves synchronously with the hobbing to ensure that the board does not directly contact the hobbing and avoid scratches.

Higher degree of automation

激光上下料解决方案：ByTrans Extended

Laser loading and unloading solution: ByTrans ExtendedIt can be connected to the material storage system ByTower, and the semi-finished products that have been cut can be automatically returned to the warehouse, achieving automatic continuous production and configuring the unloading tray exchange device, achieving a higher degree of automation.
