Nazai Intelligent Technology (Zhejiang) Co., Ltd
Five axis five linkage CNC tool grinder
NegotiableUpdate on 01/08
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
The NZ-C828 Mini Power linear five axis five linkage CNC tool grinder adopts an integral imported organic glass circular opening door, which facilitates unrestricted operation and maintenance of the machine tool. The fully enclosed protective cover conforms to production safety. In order to cope with the production of special tools, the relative position relationship of the servo axis of the equipment is optimized, and it can correspond to the mechanism manufacturing of multiple types of tool processing. X. The Y-axis adopts imported linear motors and guide rails, while the Z-axis adopts imported servo motors and screw guide rails, with high precision and resolution, ensuring high production efficiency and quality of cutting tools.
Product Details

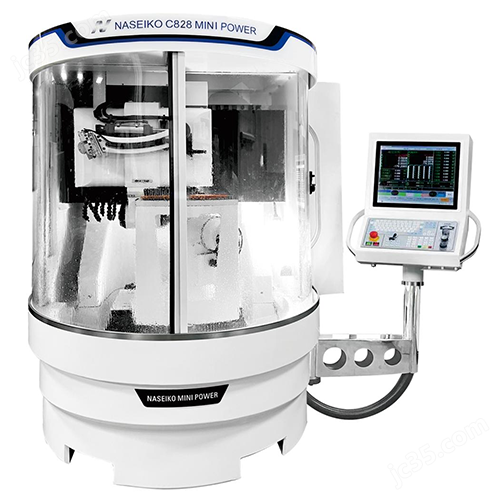

NZ-C828 Mini Power linear five axis five linkage CNC tool grinder
1、 Overview of Machine Tool:
The five axis five linkage CNC tool grinding machine produced by our company is designed based on the experience of the German five axis CNC tool grinding machine (WRT) and the practical operation of the design personnel, as well as communication at the tool production site. Reflected in practicality, economy, operation, maintenance, stability, and efficiency.
The machine tool adopts an imported organic glass circular arc door, which facilitates unrestricted operation and maintenance of the machine tool. The fully enclosed protective cover meets production safety requirements. In order to cope with the production of special tools, the relative position relationship of the servo axis of the equipment is optimized, and it can correspond to the mechanism manufacturing of multiple types of tool processing.
X. The Y-axis adopts imported linear motors and guide rails, while the Z-axis adopts imported servo motors and screw guide rails, with high precision and resolution, ensuring high production efficiency and quality of cutting tools.
2、 Main configuration:
C828 Five Axis Five Linkage CNC Grinding Machine
1. X axis horizontal linear CNC axis, Taiwan, China linear motor, YH grating ruler, THK precision roller guide rail.
2. Y-axis horizontal linear CNC axis, Taiwan, China linear motor, YH grating ruler, THK precision roller guide rail.
3. Z-axis vertical linear CNC axis, Taiwan, China servo motor, THK precision ball screw, THK precision roller guide.
4. A-axis: workpiece rotation indexing axis DD direct drive.
5. B-axis: Rotary indexing axis DD direct drive.
6. Renishaw high-precision imported universal probe from the UK (probe: workpiece detection).
7. Whole mineral casting marble bed and columns.
8. Arc shaped sealed hood with double-sided doors for easy maintenance.
9. Adopting a mobile hand pulse with a magnet for easy operation.
10. Special permanent magnetic electric spindle, double grinding head design (customized in Taiwan, China, China) HSK grinding wheel flange can be removed as a whole to the grinding wheel dresser to repair the grinding wheel.
11. Install tube sealed oil proof LED lights inside the machine.
12. Note:
-Guide rail: THK P grade from Japan
-Screw rod: THK C3 from Japan
-Servo motor: Taiwan, China servo (absolute value)
-CNC system: new generation in Taiwan, China, China (software: tool specific processing software 4.1)
-Probe: Renishaw (universal)
III Main functional and technical description:
4、 Operating System:
1. Operating environment: Tool specific software (version 4.1) with simulation operation software.
2. Display screen description: A 17 inch LCD screen that displays the dialogue framework for mechanical coordinates, relative coordinates, absolute coordinates, and executing machining programs on the screen.
3. Interface description: The tool processing software (version 4.1) includes parameters such as diameter, number of threads (number of slots), helix angle, slot length, slot speed, slot depth (incremental adjustment of slot depth), and helix direction (left or right rotation).
4. Keyboard: Thin film button keyboard, with letter and number keys integrated with the display.
5. Hard drive: 256GB
6. Control system: new generation in Taiwan, China, China.
7. Data input and output methods: keyboard input, computer connection.
8. Simulation: 2D simulation, 3D simulation, 3D collision check, can see the shape of the processed material, and modify the parameters based on the parameters obtained after simulation.
9. Software package functionality:
(1) Milling cutter software package: (including standard milling cutter, unequal section milling cutter, unequal helix angle milling cutter, variable lead milling cutter, rough skin milling cutter, taper milling cutter, dovetail milling cutter, multi edge milling cutter, taper ball end milling cutter, etc.)
(2) Drill bit software package: (including 18 kinds of drill point shape software, Fried Dough Twists drill, step drill, drill milling cutter, step drill milling cutter, insert milling cutter, gun drill, skip drill, chamfering cutter, centering drill, etc.)
(3) Forming knife software package: (including various DXF spline curve anti type knives, T-shaped milling cutters, etc.)
(4) Rotating file package: (including flat head rotating file, taper rotating file, ball head rotating file, circular arc rotating file, DXF forming rotating file, etc.)
10. Adopting the latest version with room for upgrade, it can be upgraded.
-Scope of application: Applied to industries such as 3C, medical, automotive, high-speed rail, aerospace, mold, mechanical processing, etc; Milling cutters, drill bits, reamers, threading cutters, ball cutters, nose cutters, non-standard cutters for the automotive industry, non-standard inserts, forming grooves, rotary files, unequal sections, unequal spirals, and spiral gradients.
-Processing diameter range: φ 1- φ 12; Grinding workpiece blade length: 120MM.
-Spindle power: 12KW.
