Five axis five linkage CNC grinding machine
NegotiableUpdate on 01/08
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
The NZ-C828 Mini Ultra linear five axis five linkage CNC grinder adopts an imported organic glass arc door, which facilitates unrestricted operation and maintenance of the machine tool. The fully enclosed protective cover meets production safety requirements. To cope with the production of special tools, the relative position relationship of the servo axis of the equipment is optimized, and it can be used for the mechanism manufacturing of multiple types of tool processing.
Product Details

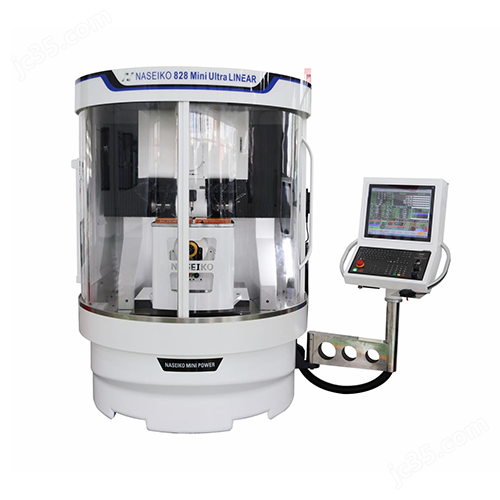

NZ-C828 Mini Ultra linearFive axis five linkage CNC grinding machine
1、 Overview of Machine Tool:
The 5-axis 5-axis 5-axis CNC tool grinding machine produced by our company is designed based on the experience of the German 5-axis CNC tool grinding machine (WRT) and the practical operation of the design personnel, as well as communication at the tool production site. Reflected in practicality, economy, operation, maintenance, stability, and efficiency.
The machine tool adopts an imported organic glass circular arc door, which facilitates unrestricted operation and maintenance of the machine tool. The fully enclosed protective cover meets production safety requirements. In order to cope with the production of special tools, the relative position relationship of the servo axis of the equipment is optimized, and it can correspond to the mechanism manufacturing of multiple types of tool processing.
All axes are equipped with imported servo motors and screw guides, with high precision and resolution, ensuring high production efficiency and quality of the cutting tools.
2、 Main configuration:
1. X-axis horizontal linear CNC axis, Taiwan, China linear motor, YH grating ruler, THK precision roller guide rail.
2. Y-axis horizontal linear CNC axis, Taiwan, China linear motor, YH grating ruler, THK precision roller guide rail.
3. Z-axis vertical linear CNC axis, Taiwan, China servo motor, THK precision ball screw, THK precision roller guide.
4. A-axis: Workpiece rotation indexing axis DD direct drive (DMT Sino German joint venture).
5. B-axis: Rotary indexing axis DD direct drive (DMT Sino German joint venture).
6. Renishaw high-precision imported universal probe from the UK (probe: workpiece detection).
7. Whole mineral casting marble bed and columns.
8. Arc shaped sealed hood with double-sided doors for easy maintenance.
9. Adopting a mobile hand pulse with a magnet for easy operation.
10. Special permanent magnetic electric spindle, double grinding head design (customized in Taiwan, China, China) HSK grinding wheel flange can be removed as a whole to the grinding wheel dresser to repair the grinding wheel.
11. Install tube sealed oil proof LED lights inside the machine.
Note:
Guide rail Japan THK P class
Screw rod Japan THK C3
Servo motor Taiwan, China servo (absolute value)
New generation CNC system in Taiwan, China, China (software: tool specific processing software 4.1)
Probe Renishaw (universal)
III Main functional and technical description:
paint model |
White+gray black orange pattern |
X-axis |
CNC 5-axis linkage linear axis, linear motor in Taiwan, China, China, TR=816Nm(5.6A) 、 Maximum TM=1646Nm (12A), YH grating ruler, resolution: 0.01 microns, stroke: 640mm; CNC system resolution: 0.0001mm, programming and handwheel feed minimum resolution: 0.001mm, guide rail SRG35-P repeat positioning accuracy: 0.003mm |
Y-axis |
CNC 5-axis linkage linear axis, linear motor in Taiwan, China, China, TR=816Nm(5.6A) 、 Maximum TM=1646Nm (12A), YH grating ruler, resolution: 0.01 microns, stroke: 380mm; CNC system resolution: 0.0001mm, programming and handwheel feed minimum resolution: 0.001mm, guide rail SRG35-P repeat positioning accuracy: 0.003mm |
Z-axis |
CNC 5-axis linkage linear axis, driven by Taiwan, China's new generation servo motor, power 3.1KW (absolute value), stroke: 270mm; YH grating ruler (optional), resolution: 0.01 μ m, resolution of CNC system 0.0001mm, minimum resolution of programming and hand wheel feeding 0.001mm, THK screw BIF32-C3, guide rail SRG35-P, repeated positioning accuracy: 0.003mm |
A-axis |
CNC 5-axis linkage workpiece rotation axis, DD servo direct drive, power 0.879KW, rated TR=45Nm (5.9A), maximum TM=86Nm (13A), indexing accuracy: ± 2 arc seconds (0.0005 degrees), rated speed: 300rpm, maximum speed: 400rpm, CNC system resolution: 0.0001 degrees, programming and handwheel feed minimum resolution: 0.001 degrees, infinite rotation, indexing head body: radial runout: 0.001-0.005mm, end face runout: 0.001-0.005mm, rotary encoder: Renishaw, UK |
B-axis |
CNC 5-axis linkage pallet rotating shaft, DD servo direct drive, power 0.942KW (7.5A) rated TR=583Nm (12.5A), maximum TM=1130Nm (32A), indexing accuracy: ± 2 arcseconds (0.0005 degrees), rated speed: 50rpm, maximum speed: 100rpm, CNC system resolution: 0.0001 degrees, programming and handwheel feed minimum resolution: 0.001 degrees, circular rotation to 360 degrees, -180 degrees+180 degrees rotation positioning accuracy: 4arc-sec rotary encoder: Renishaw, UK |
Quickly move X.Y.Z |
X/Y轴 30 m/min Z 轴7.5 m/min |
Minimum workpiece diameter for clamping |
3mm |
Maximum workpiece diameter for clamping |
20mm (using the Xiongke SK50-20 can clamp a maximum diameter of 32mm) |
Maximum workpiece clamping length |
250mm |
Minimum workpiece diameter for main grinding |
1mm |
Maximum workpiece diameter for main grinding |
12mm |
Maximum blade length for main grinding |
150 MM |
Maximum workpiece weight for main grinding |
5kg |
Knife handle form |
Shaw Berlin W25 or Xiongke BT50 SK50-20/15 (customer's choice) |
Linear resolution |
0.0001mm |
Linear repeat positioning accuracy |
0.003mm |
Rotation resolution |
0.001mm |
Rotation repeatability positioning accuracy |
4arc-sec |
spindle power |
12kw permanent magnet constant torque electric spindle |
Grinding wheel rod form |
HSK50F-31.75mm or 20mm |
Grinding wheel diameter |
75～150mm |
Grinding wheel spindle speed |
4000-8000rpm infinitely adjustable: driver |
machine tool weight |
About 5000kg |
Total power |
≤22.5kw |
4 Operating System:
1. Operating environment: Tool specific software (version 4.1) with simulation operation software.
2. Display screen description: A 17 inch LCD screen displays a dialogue framework for mechanical coordinates, relative coordinates, absolute coordinates, and executing machining programs on the screen.
3. Interface description: The tool processing software (version 4.1) includes parameters such as diameter, number of threads (number of slots), helix angle, slot length, slot speed, slot depth (incremental adjustment of slot depth), and helix direction (left or right rotation).
4. Keyboard: Thin film button keyboard, with letter and number keys integrated with the display.
5. Hard drive: 256GB
6. Control system: new generation in Taiwan, China.
7. Data input and output methods: keyboard input, computer connection.
8. Simulation: 2D simulation, 3D simulation, 3D collision check, can see the shape of the processed material, and modify the parameters based on the parameters obtained after simulation.
9. Software package functionality:
(1) Milling cutter software package: (including standard milling cutter, unequal section milling cutter, unequal helix angle milling cutter, variable lead milling cutter, rough skin milling cutter, taper milling cutter, dovetail milling cutter, multi edge milling cutter, taper ball end milling cutter, etc.)
(2) Drill bit software package: (including 18 kinds of drill point shape software, Fried Dough Twists drill, step drill, drill milling cutter, step drill milling cutter, insert milling cutter, gun drill, skip drill, chamfering cutter, centering drill, etc.)
(3) Forming knife software package: (including various DXF spline curve anti type knives, T-shaped milling cutters, etc.)
(4) Rotating file package: (including flat head rotating file, taper rotating file, ball head rotating file, circular arc rotating file, DXF forming rotating file, etc.)
10. Adopt the latest version with upgrade space available for upgrading.
NZ-C828 Mini Ultra linearFive axis five linkage CNC grinding machine
Scope of application: Applied to industries such as 3C, medical, automotive, high-speed rail, aerospace, mold, mechanical processing, etc; Milling cutters, drill bits, reamers, threading cutters, ball cutters, round nose cutters, non-standard cutters for the automotive industry, non-standard inserts, forming grooves, rotary files, unequal sections, unequal spirals, spiral gradients
Processing diameter range: φ 1- φ 12
Grinding workpiece blade length: 150 mm
Spindle power: 12KW
