Nazai Intelligent Technology (Zhejiang) Co., Ltd
Five axis CNC tool grinder
NegotiableUpdate on 01/08
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
NZ-C828 Power linear five axis CNC tool grinder is suitable for 3C, medical, automotive, high-speed rail, aerospace, and precision tool grinding; Milling cutters, drill bits, reamers, threading cutters, ball cutters, round nose cutters, non-standard cutters for the automotive industry, non-standard blades, forming cutters, and rotary files. $n Processing diameter range: φ 1- φ 20 $n Grinding workpiece blade length: 180MM $n Spindle power: 22KW
Product Details

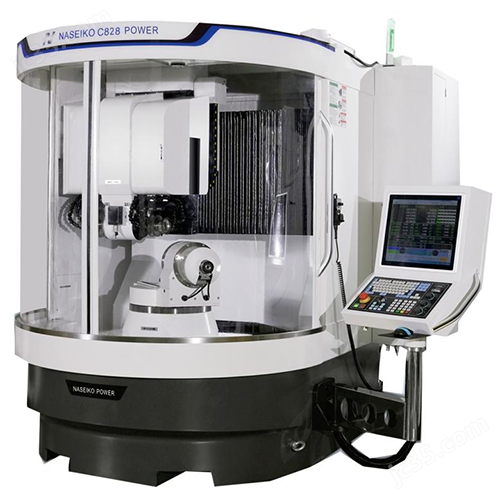

NZ-C828 Power linearFive axis CNC tool grinder
1、 Overview of Machine Tool:
The five axis five linkage CNC tool grinding machine produced by our company is designed based on the experience of the German five axis CNC tool grinding machine (WRT) and the practical operation of the design personnel, as well as communication at the tool production site. Reflected in practicality, economy, operation, maintenance, stability, and efficiency.
The machine tool adopts an imported organic glass curved door, which facilitates unrestricted operation and maintenance of the machine tool. The fully enclosed protective cover conforms to production safety. To cope with the production of special tools, the relative position relationship of the servo axis of the equipment is achievedExcellentHua, a mechanism that can correspond to the processing of multiple types of tools.
X. The Y-axis adopts imported linear motors and guide rails, while the Z-axis adopts imported servo motors and screw guide rails, with high precision and resolution, ensuring high production efficiency and quality of cutting tools.
2、 Main configuration:
1. X-axis horizontal linear CNC axis, Taiwan, China HIWIN (Shangyin) linear motor, THK precision roller guide rail.
2. Y-axis horizontal linear CNC axis, Taiwan, China HIWIN (Shangyin) linear motor, THK precision roller guide rail.
3. Z-axis vertical straight line CNC axis, Yaskawa servo motor from Japan, THK precision ball screw, THK precision roller guide rail.
4. Axis A: DD direct drive of workpiece rotation index axis (customized in Taiwan, China).
5. Axis B: rotary indexing axis DD direct drive (customized in Taiwan, China).
6. Renishaw high-precision imported universal probe from the UK (probe: workpiece detection)
7. Whole mineral casting marble bed and columns.
8. Arc shaped sealed hood with double-sided doors for easy maintenance.
9. Adopting a mobile hand pulse with a magnet for easy operation.
10. Special high-speed mechanical spindle, double grinding head design (customized in Taiwan, China, China) HSK grinding wheel flange can be integrally disassembled to the grinding wheel dresser to repair the grinding wheel.
11. The spindle motor is equipped with a dedicated driver for permanent magnet motors.
12. Install tube sealed oil proof LED lights inside the machine.
Note:
Guide rail Japan THK P class
Screw rod Japan THK C3
Linear motor Taiwan, China Shangyin
Servo Motor Japan Yaskawa Servo (Absolute Value)
New generation CNC system in Taiwan, China, China (software: tool specific processing software 4.1)
Probe Renishaw (universal)
III Main functional and technical description:
| content | data | content | data |
| paint model | white-blue Orange pattern | Linear resolution | 0.001mm |
| Quick MoveX.Y | 35m/min | Linear repeat positioning accuracy | 0.003mm |
| Quick MoveZ | 7.5m/min | Linear repeat positioning accuracy | 0.003mm |
| Minimum diameter of clamped workpiece | 3mm | Rotation resolution | 0.001mm |
| Maximum diameter of clamped workpiece | 20mm | Rotation repeatability positioning accuracy | 4 arc-sec |
| Maximum length of main grinding workpiece | 150mm | spindle power | high-end configuration12KW |
| Minimum diameter of main grinding workpiece | 1mm | Grinding wheel rod form | HSK50F-31.75mm/20mm |
| Maximum diameter of the main grinding workpiece | 12mm | Grinding wheel diameter | 70-150mm |
| Maximum blade length for main grinding | 100mm | Grinding wheel spindle speed | 1000~8000rpmInfinitely adjustable |
| Maximum workpiece weight for main grinding | 5kg | machine tool weight | about4000kg |
| Knife handle form | Xiao BailinW25 | Total power | ≤29kw |
| Grinding machine size (length)*wide*High) | Grinding machine:1950*2400*2100mm | ||
| Xaxis | CNC (Computer Numerical Control) 5 Axis linkage linear axis,DMTLinear motor, power2KW,rated torque | ||
| TR=832NM(4.8A), the highestTM=1800NM(14.4A); Schedule:540mm； Numerical Control System Resolution0.0001mm， Minimum resolution for programming and handwheel feed0.001mm, guide railSRG30-P bandwidthRepetitive positioning accuracy:0.003mm | |||
| Yaxis | CNC (Computer Numerical Control) 5 Axis linkage linear axis,DMTLinear motor, power2KW,rated torque | ||
| TR=832NM(4.8A), the highestTM=1800NM(14.4A); Schedule:460mm； Numerical Control System Resolution0.0001mm， Minimum resolution for programming and handwheel feed0.001mm, guide railSRG30 bandwidth-P bandwidthRepetitive positioning accuracy:0.003mm | |||
| Zaxis | CNC (Computer Numerical Control) 5 Axis linked linear axis, driven by a new generation servo motor, power3KW(absolute value); Schedule:250mm； Numerical Control System Resolution0.0001mm， Minimum resolution for programming and handwheel feed0.001mm，THKlead screwBIF32,guide railSRG35-P bandwidthRepetitive positioning accuracy:0.003mm | ||
| Aaxis | CNC (Computer Numerical Control) 5 Axis linked workpiece rotation axis,DDServo direct drive, power1.37KWratedTR=83Nm（5.3A）； maximumTM=318Nm（28A）； Rated speed:200rpm； Maximum speed:250rpmNumerical Control Resolution:0.0001 mmMinimum resolution for programming and handwheel feed 0.001 Degree; Infinite rotation, indexing head body: taper hole cone jumping≤0.002mmEnd face jumping≤0.005mm. | ||
| Baxis | CNC (Computer Numerical Control) 5 Axis linked workpiece rotation axis,DDServo direct drive, power2.2KWratedTR=259Nm（7.8A）； maximumTM=460Nm（17.9A）； Rated speed:50rpm； Maximum speed:100rpmNumerical Control Resolution:0.0001mmMinimum resolution for programming and handwheel feed 0.001 Degree; Rotate the circle to 270 Degree（-90 degree-180 Degree); Rotation positioning accuracy:±5arc-sec. | ||
4 Operating System:
1. Operating environment: Tool specific software (version 4.6.8F) with simulation operation software.
2. Display screen description: A 17 inch LCD screen displays a dialogue framework for mechanical coordinates, relative coordinates, absolute coordinates, and executing machining programs on the screen.
3. Interface description: The tool processing software (version 4.6.8F) includes parameters such as diameter, number of threads (number of slots), thread degree, slot length, slot speed, slot depth (incremental adjustment of slot depth), and spiral direction (left or right rotation) when running.
4. Keyboard: Thin film button keyboard, with letter and number keys integrated with the display.
5. Hard drive: 256GB
6. Control system: new generation in Taiwan, China.
7. Data input and output methods: keyboard input, computer connection.
8. Simulation: 2D simulation, 3D simulation, 3D collision check, can see the shape of the processed material, and modify the parameters based on the parameters obtained after simulation.
9. Software package functionality:
(1) Milling cutter software package: (including standard milling cutter, unequal section milling cutter, unequal helix angle milling cutter, variable lead milling cutter, rough skin milling cutter, taper milling cutter, dovetail milling cutter, multi edge milling cutter, taper ball end milling cutter, etc.)
(2) Drill bit software package: (including 18 kinds of drill point shape software, Fried Dough Twists drill, step drill, drill milling cutter, step drill milling cutter, insert milling cutter, gun drill, skip drill, chamfering cutter, centering drill, etc.)
(3) Forming knife software package: (including various DXF spline curve anti type knives, T-shaped milling cutters, etc.)
(4) Rotating file package: (including flat head rotating file, taper rotating file, ball head rotating file, circular arc rotating file, DXF forming rotating file, etc.)
10. Adopt the latest version with upgrade space available for upgrading.
NZ-C828 Power linearFive axis CNC tool grinder
Scope of application: Used in 3C, medical, automotive, high-speed rail, aerospace, precision tool grinding; Milling cutters, drill bits, reamers, threading cutters, ball cutters, round nose cutters, non-standard cutters for the automotive industry, non-standard blades, forming cutters, rotary files
Processing diameter range: φ 1- φ 20
Grinding workpiece blade length: 180mm
Spindle power: 22KW
