Zhejiang Jingyao CNC Technology Co., Ltd

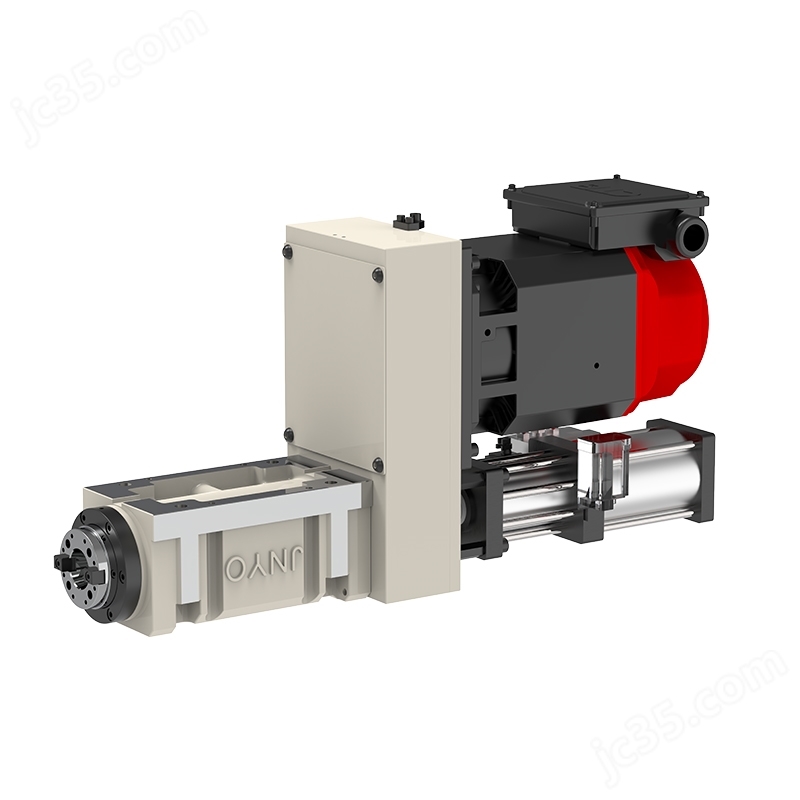

Boring and milling spindle head reinforced motor (rear)
NegotiableUpdate on 01/10
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
XT40-1-E series boring and milling spindle head reinforced type matching motor (rear) $r $nXT40-1 spindle head reinforced type spindle form: $r $nNT40 is a traditional rear pull rod tool with a taper of 7:24. $r $nBT40 is an automatic tool changer with a taper of 7:24. $r $n ※ The motor power and speed can be configured with V-belt, synchronous belt, and multi wedge belt speed ratios according to demand. $r $n ※ Special specifications of power heads can be customized. $r $n ※ The configuration direction of the motor box can also be front installed on the left side 90& #176; /Front right 90& #176; Rear left side 90& #176; /Rear right 90& #176; Down front/down back.
Product Details
XT40-1-E seriesBoring and milling spindle head reinforced motor (rear)
XT40-1 spindle head reinforced spindle form:
NT40 is a traditional back pull rod tool with a taper of 7:24.
BT40 is an automatic tool changer with a taper of 7:24.
The motor power and speed can be configured with V-belt, synchronous belt, and multi wedge belt speed ratios according to demand.
Special specifications of power heads can be customized.
The configuration direction of the motor box can also be front mounted at 90 ° left/front mounted at 90 ° right, rear mounted at 90 ° left/rear mounted at 90 ° right, and downward front/downward rear.
XT40-1-E seriesBoring and milling spindle head reinforced motor (rear)Technical Specifications:
